In the rapidly evolving world of technical footwear, material engineers are constantly searching for the perfect balance between flexibility, durability, and weather protection. While traditional solid plastics are often too rigid and standard fabrics lack barrier protection, the introduction of the TPU membrane has completely revolutionized modern shoe manufacturing.
Whether you are developing a lightweight trail running shoe or a flexible waterproof hiking boot, incorporating a high-quality TPU membrane is often the smartest engineering choice. In this ultimate guide, we will explore what a TPU membrane is, how it works, and why it has become a dominant force in the global footwear supply chain.
Understanding the Technology: What is a TPU Membrane?
The acronym TPU stands for Thermoplastic Polyurethane. A TPU membrane is a highly advanced, ultra-thin film manufactured through the extrusion of thermoplastic polyurethane resins.
Unlike standard PU (polyurethane), which can sometimes lack structural memory, a TPU membrane is characterized by its incredible elasticity and high tensile strength. It acts as a resilient, flexible skin for footwear. Depending on the exact chemical formulation, a TPU membrane can be engineered to be completely waterproof while still managing moisture through a hydrophilic (water-loving) chemical structure, pulling sweat away from the foot and pushing it outward.
Key Benefits of Using a TPU Membrane in Shoes
Footwear brands and material sourcing managers frequently choose a TPU membrane over other barrier films for several critical reasons:
1. Extreme Elasticity and Flex Resistance

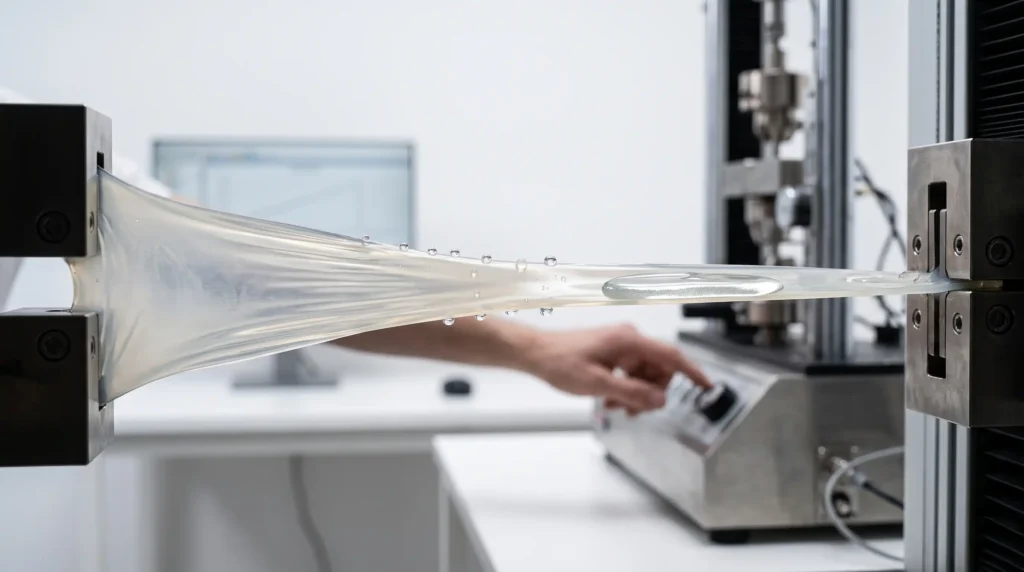

When a runner takes a step, the forefoot of the shoe bends significantly. A rigid waterproof film will eventually crack or delaminate under this continuous stress. A TPU membrane has remarkable stretch recovery. It can stretch repeatedly and return to its original shape without losing its waterproof integrity, making it ideal for athletic and dynamic footwear.
2. Waterproof Reliability
Despite its thinness, a solid hydrophilic TPU membrane offers exceptional resistance to hydrostatic pressure. When tested against rigorous global standards set by organizations like ASTM International, shoes equipped with these membranes consistently pass dynamic water flex tests, keeping the wearer’s feet completely dry.
3. Eco-Friendly Potential
Compared to traditional PVC or older solvent-heavy coatings, a TPU membrane is generally considered more environmentally friendly. It does not require harmful plasticizers for flexibility, and many modern thermoplastic polyurethane films can be recycled at the end of their life cycle.
TPU Membrane vs. PTFE Membrane
When sourcing waterproof materials, purchasing managers often debate between using a TPU membrane or a PTFE membrane. Understanding the difference is crucial for your product line:
- Mechanism: A PTFE membrane uses physical micropores to let sweat escape, while a TPU membrane relies on a solid hydrophilic structure that chemically transfers moisture.
- Flexibility: TPU offers far superior stretch and elasticity compared to PTFE, making TPU much better for tight-fitting or highly flexible athletic shoes.
- Cost Efficiency: Generally, a TPU membrane provides a highly competitive price-to-performance ratio, making it suitable for mass-market commercial footwear, whereas PTFE is usually reserved for ultra-premium, extreme-altitude mountaineering boots.
How a TPU Membrane is Integrated into Footwear
Because the raw film is incredibly thin (often ranging from 10 to 50 microns) and highly elastic, it is nearly impossible for shoe factories to handle and sew a raw TPU membrane directly on the assembly line.

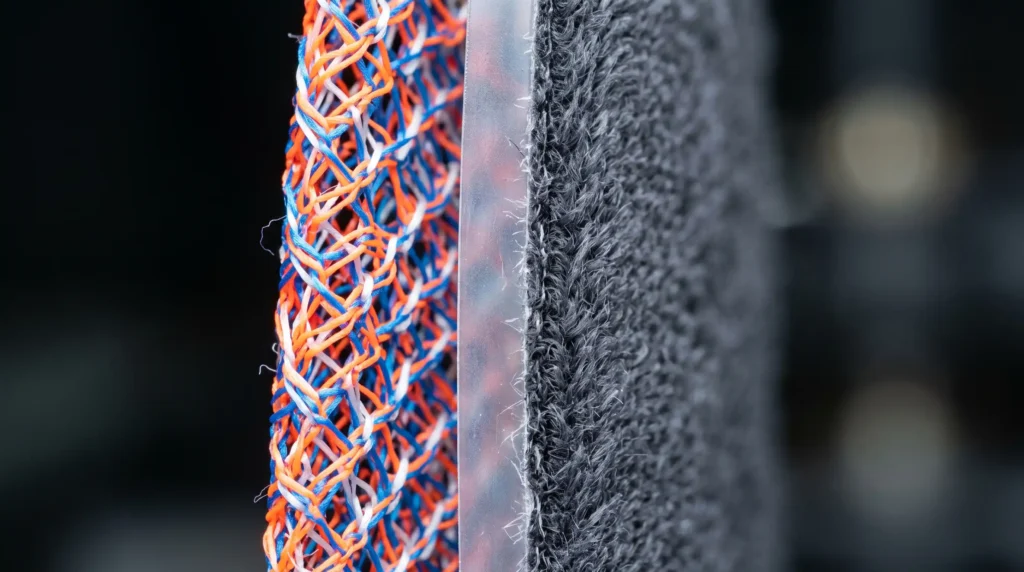

Instead, the TPU membrane must be laminated. Specialized suppliers use precision PUR (Polyurethane Reactive) hot-melt adhesive dots to bond the membrane securely between an outer durable mesh and a soft inner lining. This creates ready-to-use composite shoe materials that footwear factories can easily cut and stitch without risking damage to the delicate waterproof barrier.
Source Your Premium Materials with Galetex
Selecting the right barrier technology is the foundation of a successful waterproof shoe. At Galetex, we are leading experts in technical textile lamination and membrane technology.
We supply global footwear brands with highly customized composite materials featuring state-of-the-art TPU membrane integration. Whether you need maximum stretch for a running sneaker or enhanced thickness for a rugged work boot, our engineering team can calibrate the perfect TPU solution for your needs. Contact Galetex today to elevate your footwear production with premium, reliable waterproof materials.
